MS27144-2
Connector Kit 16 AWG Male
The MS27144-2 is a 16 AWG "Male" connector that is used on all U.S. military vehicles. It is recommended that only MIL-DTL-13486/1 cable be used for military applications in order to obtain a waterproof assembly. Other types of cable with smaller outer diameters will need to be built up with approved heat shrink sealing to provide a waterproof seal. In addition, to aid in assembling the cable to the connector, the user may apply isopropyl alcohol as an assembly lubricant. NSN: 5935-00-115-2307
MS Single Wire Connector's National Stock Reference Number
- Ordnance Part Number
- Description
- National Stock Number
- Ordnance Part Number MS27144-2
- Description 16 GA Male connector kit
- National Stock Number 5935-00-115-2307
RESOURCES
MS Single Wire Waterproof Connectors
-

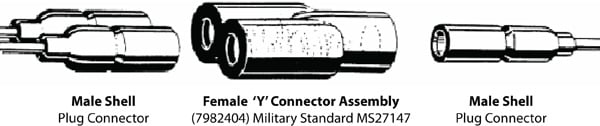

Single Line Connectors - Diagram
Single Line Connectors - Diagram
-
Complete Assembly Part Numbers - Chart
Complete Assembly Part Numbers - Chart
Gauge No. of Cable Part No. Classification Complete Assembly Part Numbers Female Connector Male Connector 16 Mil. Std.No. MS27142-3 MS27144-2 16 Ord. No. 14 Mil. Std. No. MS27142-2 MS27144-1 14 Ord. No. 8338565 8338560 12 Mil. Std. No. MS27142-1 MS27143 12 Ord. No. 8338571 8338568 -
Female Assembly Component Part Numbers - Chart
Female Assembly Component Part Numbers - Chart
Gauge No. of Cable Part No. Classification Complete assemblies are made of these two groups of components Female Components Female Shell Part No. “C” Washer Part No. Tip Terminal Part No. 16 Mil. Std.No. MS27148-3 16 Ord. No. 8724495 8724497 572931 14 Mil. Std. No. MS27148-2 14 Ord. No. 8338566 8338567 572929 12 Mil. Std. No. MS27148-1 12 Ord. No. 8338572 8338573 572930 -
Male Assembly Component Part Numbers - Chart
Male Assembly Component Part Numbers - Chart
Gauge No. of Cable Part No. Classification Complete assemblies are made of these two groups of components Male Components Terminal Assembly Part No. Sleeve Part No. Male Shell Part No. 16 Mil. Std.No. 16 Ord. No. 8338564 8338562 8724494 14 Mil. Std. No. 14 Ord. No. 8338564 8338562 8338561 12 Mil. Std. No. 12 Ord. No. 8338564 8338570 8338569 - A ribbed (polarized) male shell, 7982401, is available in place of part number 8338561 for 14 and 16 gauge cable. Completed male assembly for 12 gauge requires the use of a 8338570 washer rather than a sleeve. All above female components conform to dimensions as shown on military standard MS33800. The MS33800 is a design specification and is not to be used as a part number.
-
“Y” Type Waterproof, Line Connectors - Diagram
“Y” Type Waterproof, Line Connectors - Diagram
- See above table for components of male shell connectors.
-
Panel Connectors - Diagrams
Panel Connectors - Diagrams
- 14 Gauge Cable Only
- Ordnance Assembly No. 8689045
- Military Standard No. MS27145
- 14 Gauge Cable Only
- Ordnance Assembly No. 10875099
-
Tooling Recommendations for Crimping MS Single Wire Series Terminals
Tooling Recommendations for Crimping MS Single Wire Series Terminals
For crimping AA52536-1, AA52536-2, and AA52536-3 terminals, we recommend the following hand tool and die set from Daniels Manufacturing Corporation (DMC):
Hand Tool: AF8; Die Set: TP529For crimping the 8338564 terminal, we recommend the following hand tool and die set from DMC:
Hand Tool: HX4; Die Set: Y627S -
MS Single Wire Connectors National Stock Reference Numbers - Chart
MS Single Wire Connectors National Stock Reference Numbers - Chart
Ordnance Part Number Description National Stock Number Packard Part Number MS27142-3 16 GA Female connector kit 5935-00-115-2306 MS27144-3 14 GA Male conn. kit w/rib shell 5935-00-184-6707 MS27148-3 16 GA Terminal bullet 5999-00-926-3144 MS27142-2 14 GA Female connector kit 5935-00-462-6603 MS27144-2 16 GA Male connector kit 5935-00-115-2307 MS27148-2 14 GA Terminal bullet 5999-00-057-2929 MS27142-1 12 GA Female connector kit 5935-01-111-9474 MS27143-1 12 GA Male connector kit 5935-00-114-0607 MS27144-1 14 GA Male connector kit 5935-00-167-7775 MS27145-1 14 GA Double plug connector kit 5935-00-767-7936 MS27147-1 Y connector 5935-00-900-6281 MS27148-1 12 GA Terminal bullet 5999-00-925-6495 MS27144-1 14 GA Male connector kit 5935-00-167-7775 7064586 2-way plug 5935-00-677-4444 5297887 7982401 14 GA Ribbed shell 5935-00-399-6673 5297242 7982404 Y-connector 5935-00-900-6281 5297243 7982907 Plug 5935-00-214-0904 5297423 7982997 Female Terminal 5940-00-144-1533 2965638 8338560 14 GA Male connector kit 5935-00-258-7192 8338561 14 GA Male shell 5935-00-833-8561 5297053 8338561-1 Shell 5935-01-102-4764 8338561-2 Shell 5975-01-108-5211 8338562 Nylon sleeve 5970-00-833-8562 5297052 8338564 Female terminal 5940-00-399-6676 2965639 8338565 14 GA Female connector kit 5935-00-034-8009 8338566 14 GA Female shell 5935-00-572-9180 5297054 8338567 14 GA Washer 5310-00-833-8567 5297055 8338568 12 GA Male connector kit 5935-00-967-6035 8338569 12 GA Male shell 2590-00-695-9076 5297084 8338570 12 GA Washer 5310-00-298-8903 5297086 8338572 12 GA Female shell 5935-00-695-9077 5297083 8338573 12 GA Washer 5310-00-595-7044 5297085 8724494 16 GA Male shell 5975-00-660-5962 2969608 8724495 16 GA Female shell 5935-00-691-5591 2965803 8724497 16 GA Washer 5310-00-656-0067 2965892 8741492 2-way connector 5935-00-807-4109 10875100 Shell 5935-00-745-7885 2962001 10875101 Double sleeve 5935-00-745-7886 2962002
