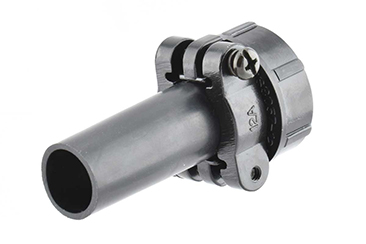

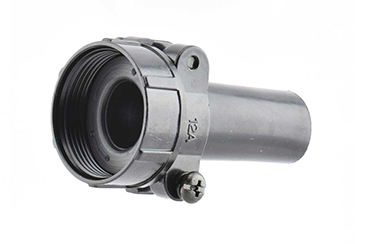

The AEC 3057 is a commercial version of the MS3057 clamp. The industrial cable clamp with rubber bushing is meant for use with 5015 Series connectors. Rubber bushing allows for use with an unjacketed cable or wire. Bushing can also be used as a reducing bushing. Cable or wire should be centered in the jaws of the clamp for maximum grip.
RESOURCES
AEC 5015 Commercial Series
-
Part Number Explanation
Part Number Explanation
Prefix Contact Type Alternate Insert Position AEC (Amerline Enterprises Co.) P = Pin/Male contacts Blank (Normal) MS (Military Standard) S = Socket/Female contacts W, X, Y, Z -
Class
Class
Class Description A Solid Shell. Solder contacts & non-pressurized B Split Shell. Solder contacts & non-pressurized E / F Environmental with resilient insulators and integral cable clamp R Environmental with resilient insulators and shortened light-weight endbell : also additional sealing with O-ring seal under coupling nut in shell style 3106 and 3108 -
AEC 5015 Part Number Cross Reference
AEC 5015 Part Number Cross Reference
MIL Spec. Amerline MS3100 AEC3100 MS3101 AEC3101 MS3102 AEC3102 MS3106 AEC3106 MS3108 AEC3108 -
Characteristics
Characteristics
Insulating Resistance 5,000㏁ Min (at 25℃) Operating Temperature -55℃ to 125℃ Durability 500 Cycle Connection/Disconnection -
Environmental Test Data
Environmental Test Data
Operating Temperature -55℃ ~ +125℃ Vibration MIL-STD-1344 Method 2005 / 10 ~ 500㎐ (10G) Shock 50G / Time:11±1μs / Test current: 100㎃ Salt Spray MIL-STD-1344 Method 1001 / Salt solution: 5%/48Hours Humidity Relative Humidity: 95% ±3% / Temperature: 71℃ ±2℃ / 14 Days -
Material / Finish
Material / Finish
Shell Aluminum alloy, olive drab chromate coating over cadmium or zinc plating Insulator Synthetic rubber Contacts Copper alloy, Silver Plated -
Composition
Composition
-
Finish options
Finish options
Suffix Finish RoHS Blank Olive Drab over Zinc (default) BLK Black Zinc BR Electro-deposited Black (RoHS)
(500hrs salt spray test)
BZR Black Zinc RoHS
(Black trivalent chromate over zinc plating)EN Electroless Nickel N Nickel OR Electro-deposited Olive Drab (RoHS)
(500hrs salt spray test) -
Shell Style
Shell Style
Style Description lass AEC3100 Wall mounting receptacle A, E/F, R AEC3101 Cable connecting plug A, E/F, R AEC3102 Box mounting receptacle A, B, E/R AEC3106 Straight plug A, B, E/F, R AEC3108 90° angle plug A, B, E/F, R AEC25183 Potting seal plug -
Alternative Insert Positions
Alternative Insert Positions
-
Contact Arrangements
Contact Arrangements
