The AEC 3180 is a commercial version of the MS3180 cover. This protective cap meets the latest 26482 Series 1 performance requirements and is intended for use with circular connector plugs. These caps represent well-proven electrical capability at a competitive cost for equipment where durability is important. The AEC 3180 is tested to meet or exceed the toughest military and industrial requirements.
AEC 3180 Protective Cap for Plugs
(Commercial Version of the MS3180)
Cross Reference / Compatibility Details
- Manufacturer
- Part Number
- Mating Connector
- Manufacturer AMERLINE®
- Part Number AEC3180
- Mating Connector AEC3116
- Manufacturer MIL-DTL-26482
- Part Number MS3180
- Mating Connector MS3116
- Manufacturer Amphenol
- Part Number 10-150957
- Mating Connector PT06, PT08, SP06, SP08, PT06SE, PT08SE, SP06SE, SP08SE, PT06CE, PT08CE, SP06CE, SP08CE
- Manufacturer ITT Cannon
- Part Number KPT80
- Mating Connector KPT06, KPT08, KPT06SE, KPT08SE
- Manufacturer SOURIAU
- Part Number 8500 Caps for Plugs
- Mating Connector 85106, 85108
* Custom design options available. Learn more.
* Product features may differ. Contact us for details.
* Product features may differ. Contact us for details.
RESOURCES

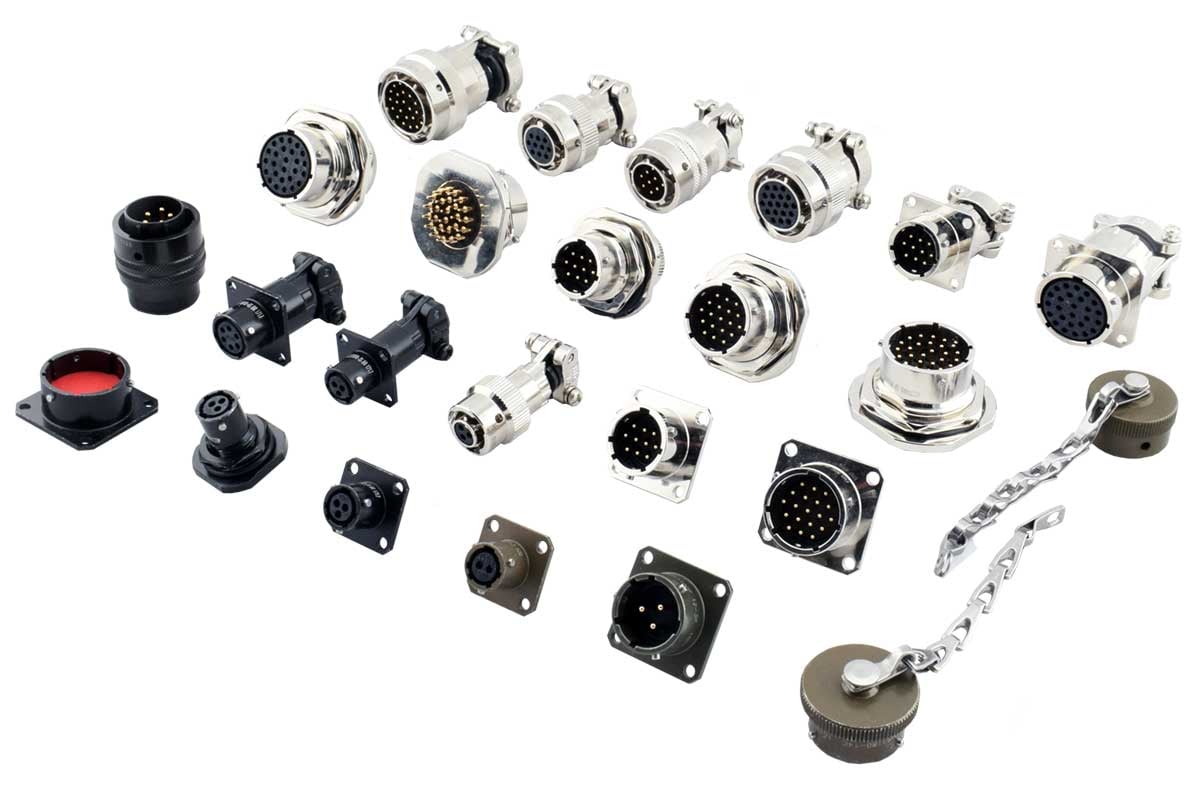

AEC 26482 Commercial Series
-
Part Number Explanation
Part Number Explanation
-
Shell Style
Shell Style
0 – Wall mounting receptacle 4 – Jam nut receptacle 1 – Cable connecting plug 6 – Straight plug 2 – Box mounting receptacle Thru-bulkhead receptacle -
Class
Class
A General duty F Grommet seal with strain relief E Grommet seal J Water tight gland seal with strain relief for jacketed Cable P Potting -
AEC 26482 Part Number Cross Reference
AEC 26482 Part Number Cross Reference
MIL Spec. Amerline MS3111 AEC3111 MS3112 AEC3112 MS3114 AEC3114 MS3116 AEC3116 MS3119 AEC3119 -
Electrical Data
Electrical Data
Service Rating MAX. Operating Voltage
(AC/DC)Testing Voltage (VAC. rms) Sea Level 50K
feet70K
feetI 600/850 1500 500 375 II 1000/1275 2300 750 500 -
Material / Finish
Material / Finish
Shell, Coupling Nut Aluminum alloy, olive drab chromate coating over zinc plating Insulator, Grommet Synthetic rubber Contacts Copper alloy with gold plating -
Current Rating
Current Rating
Contact Size Current Rating Potential Drop MAX. (mV) #20 7.5 AWG #20 ~ #24 #16 13.0 AWG #16 ~ #22 #12 23.0 AWG #12~ #14 -
Finish Options
Finish Options
Suffix Finish RoHS Blank Olive Drab over Zinc (default) BLK Black Zinc BR Electro-deposited Black (RoHS)
(500hrs salt spray test)
BZR Black Zinc RoHS
(Black trivalent chromate over zinc plating)EN Electroless Nickel N Nickel OR Electro-deposited Olive Drab (RoHS)
(500hrs salt spray test)ODZ Olive Drab over Zinc -
Alternative Insert Positions
Alternative Insert Positions
-
Contact Arrangements
Contact Arrangements
